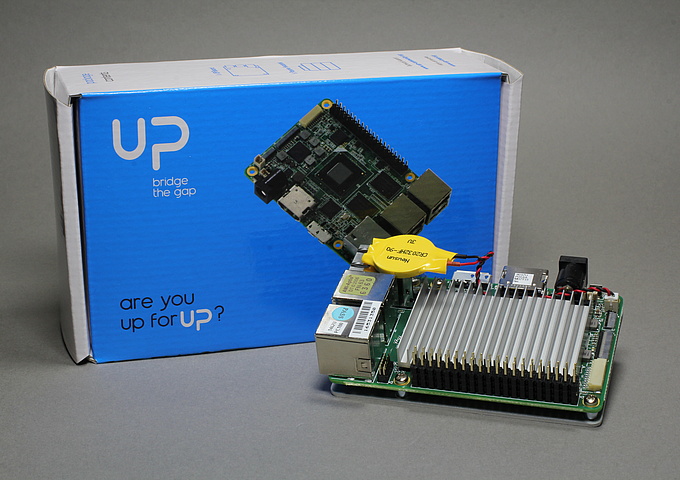

UP Board (Aaeon Europe) - quad core up to 1.92 GHz + 4 GB RAM

It was simply a question of time till a single-board computer at form factor of Raspberry Pi B+/2 with Intel Atom CPU was published. In 2014/2015 some Processor varieties for tablets, smartphones etc. were developed, which supplies energy-efficient (ca. 2W) processing power to a highly cheap price.

The first is the UP board with the Intel Core Atom Processor x5-Z8350. The electricity consumption of CPU + RAM + eMMC should be at 5 W. Price is from 100 € depending on configuration incl. Tax plus 15 Euro shipping to Germany. www.up-board.org / www.up-shop.org

Compared to the beta version the positioning of the connections changed and an update of the processor took place. Larger heat sinks were installed by the heat of the processor. The GPIO pins are with 130mm higher than the Raspberry Pi with 88mm.

UP board will be available to buy till year 2020.

Pro vs. Contra

  • proGigabit Netzwerk
  • pro1 x USB 3.0 Micro B
  • proRTC battery
  • pro1/2/4 GB Ram
  • pro16/32/64 eMMC OnBoard
  • contraHeatsink
  • contraNo HDMI CEC
  • contraMore expensive than Raspberry Pi 2/3

Info

Producer: Aaeon Europe nl

http://www.up-board.org

Status: Launched

Price: 102 €

Technical Specifications - Released: 13.05.2016

SOC: Intel® Atom™ x5-Z8350

CPU Architecture: x86 64 Bit

CPU Cores: 4

CPU Frequency: 1.44 GHz (Burst 1.92 GHz)

GPU: Intel® Gen8 HD 400
@ 500 MHz
1080p30 H.264/H.265

RAM: 1/2/4 GB

RAM Type: DDR3L

RAM Speed: 1600 Mhz

Video output: HDMI 1.4b

HDMI CEC: No

Audio output: HDMI

USB: 6 x USB 2.0

USB OTG: 1 x USB 3.0 Micro B

Ethernet: 10/100/1000 MBit/s

Wifi: -

Bluetooth: -

GPIO: 40 Pin

Storage: 16/32/64 GB eMMC

Power: 3A @ 5V - DC-in

Power idle: -

Power max: -

Dimension: 88.0 x 60.2 x 24.3 mm

Weight: 96.5 g

Operatingsystem: Ubilinux 3.0
