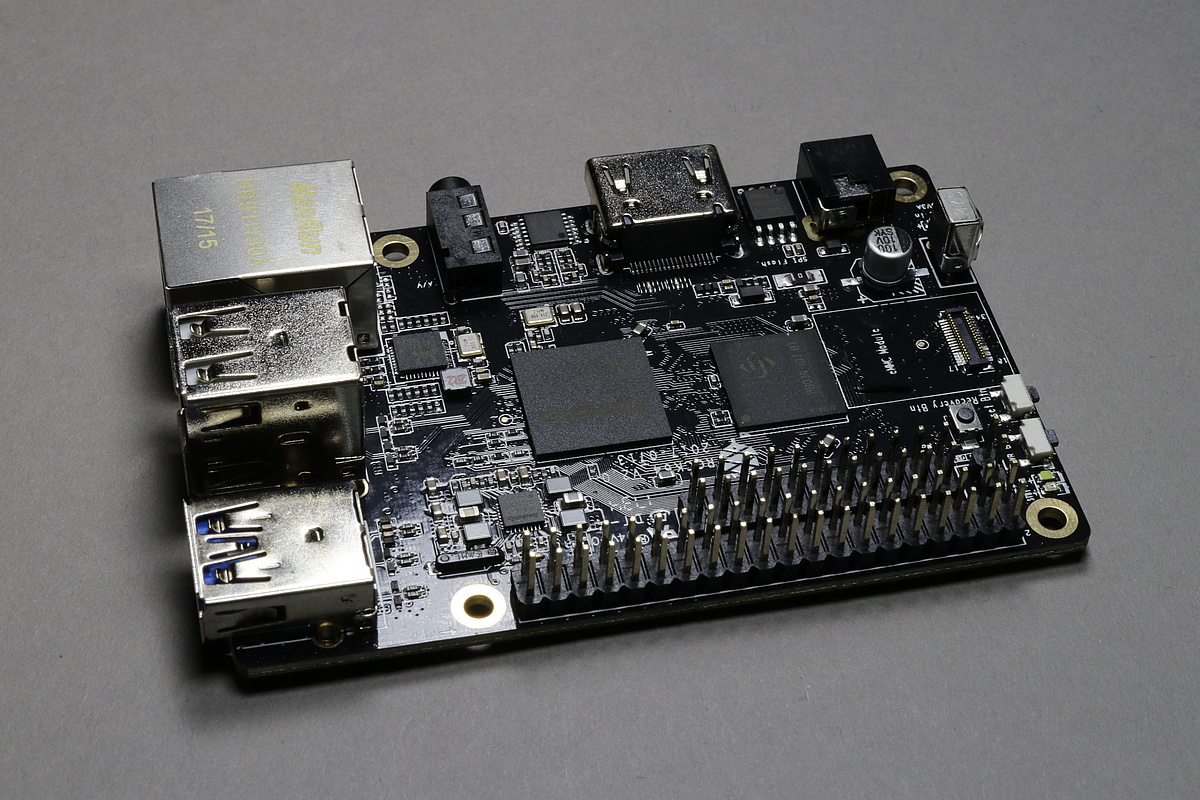

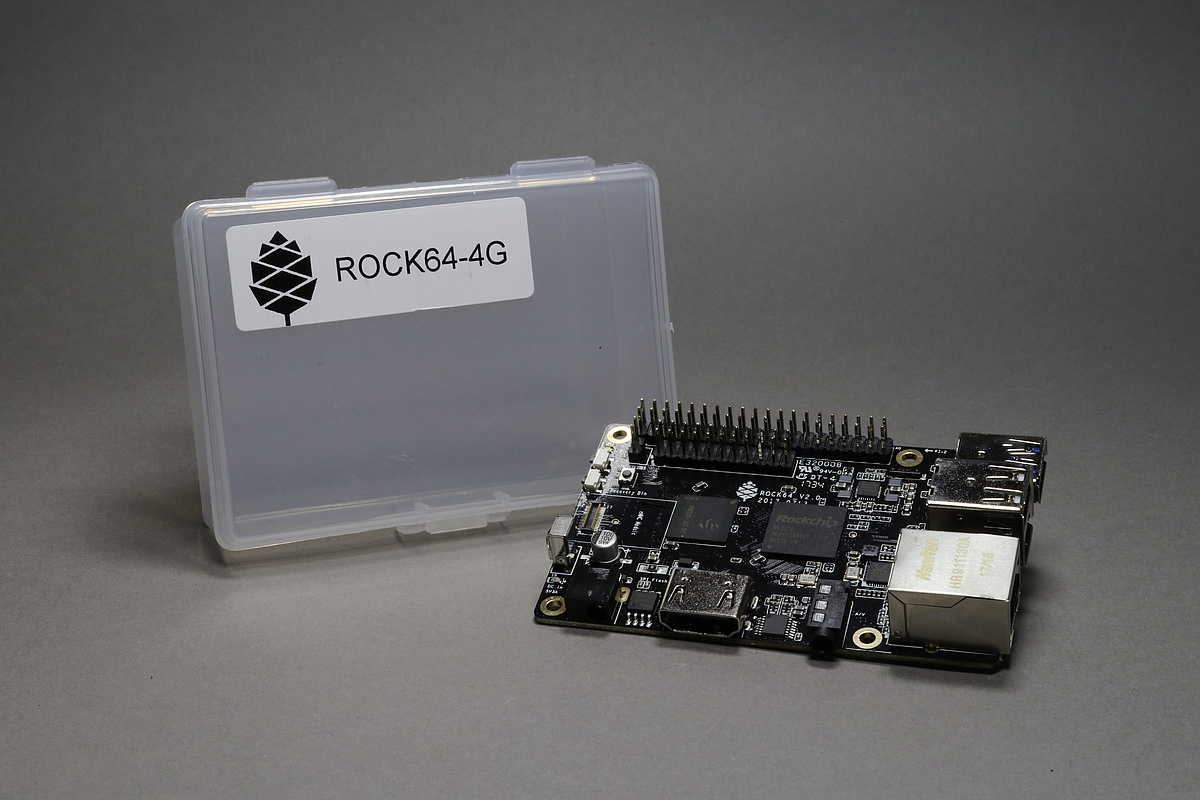

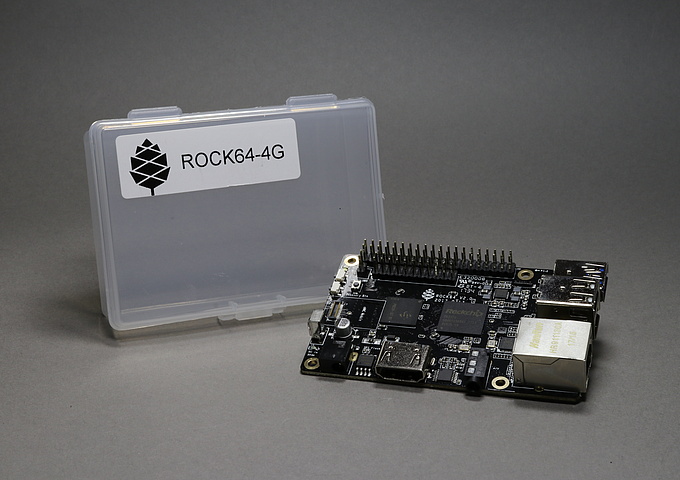

Rock64 Board (Pine64) - quad core 1.5 GHz + 4 GB RAM

From Pine64 comes the new development board called ROCK64, which has a similar form factor to the Raspberry Pi 3 board. The technical specifications of the 4K UHD video output, Gigabit Ethernet and USB 3.0 interface are clearly higher.

The Rock64 is available with 1/2/4 GB and an optional EMMC module.

Order: Rock64 Board (Pine64)

Pro vs. Contra

  • proUSB 3.0 port
  • proGigabit network
  • proHDMI 2.0
  • proMicroSD & eMMC dual media slots

Info

Producer: Pine64 us

https://www.pine64.org

Status: Launched

Price: 70 €

Technical Specifications - Released: 01.07.2017

SOC: Rockchip RK3328

CPU Architecture: ARM Cortex A53

CPU Cores: 4

CPU Frequency: 1.5 GHz

GPU: ARM Mali-450MP2
H.265 and H.264
4K @ 60 Hz

RAM: 1/2/4 GB

RAM Type: LPDDR3

RAM Speed: 1866 MHz

Video output: HDMI 2.0a 4K @ 60 Hz

HDMI CEC: No

Audio output: 3.5 mm jack, HDMI

USB: 2x USB 2.0 / 1x USB 3.0

USB OTG: -

Ethernet: 10/100/1000 MBit/s

Wifi: -

Bluetooth: -

GPIO: 40 Pin

Storage: MicroSD, eMMC

Power: 3A @ 5V - 3.5mm/1.35mm

Power idle: -

Power max: -

Dimension: 87.8 x 58.0 x 19.5 mm

Weight: 43 g

Operatingsystem: -
