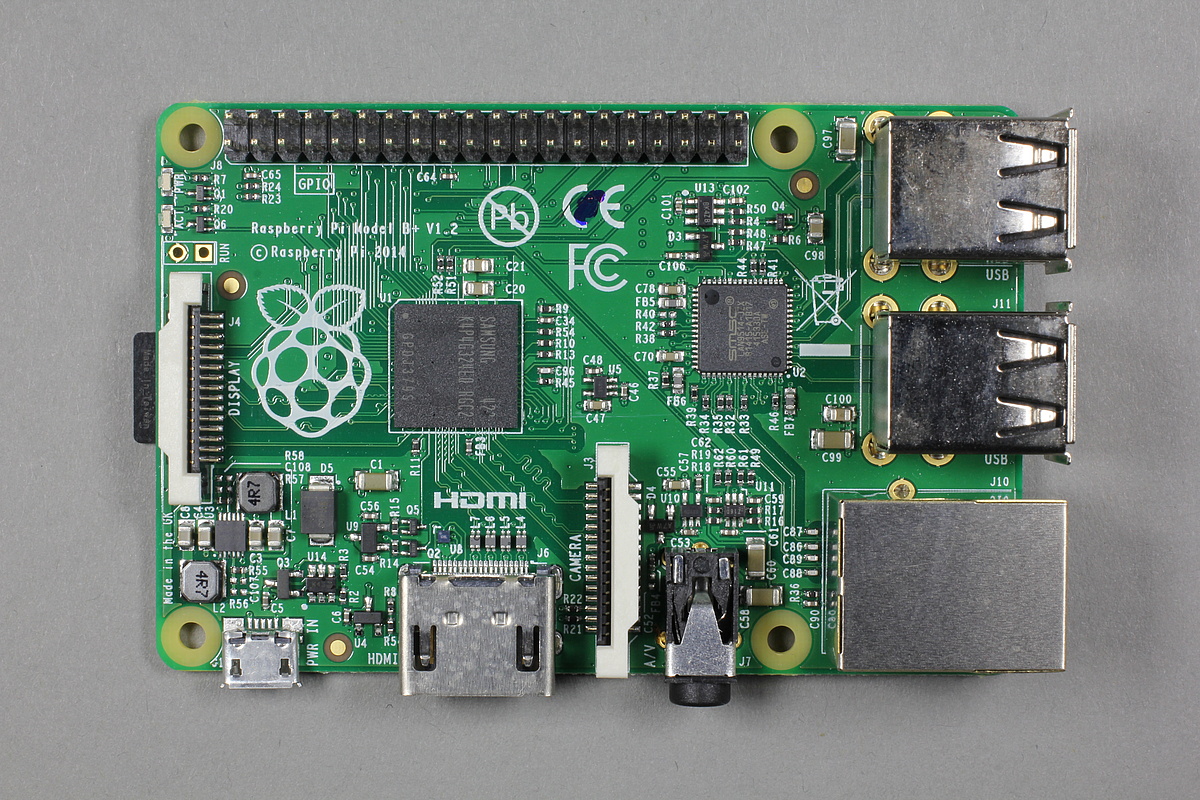

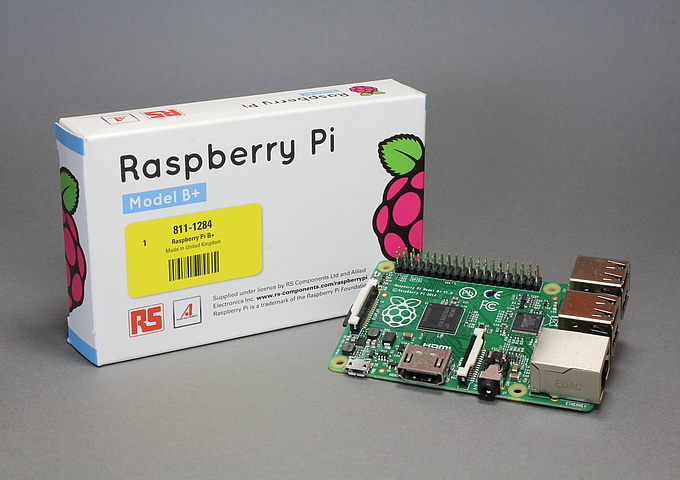

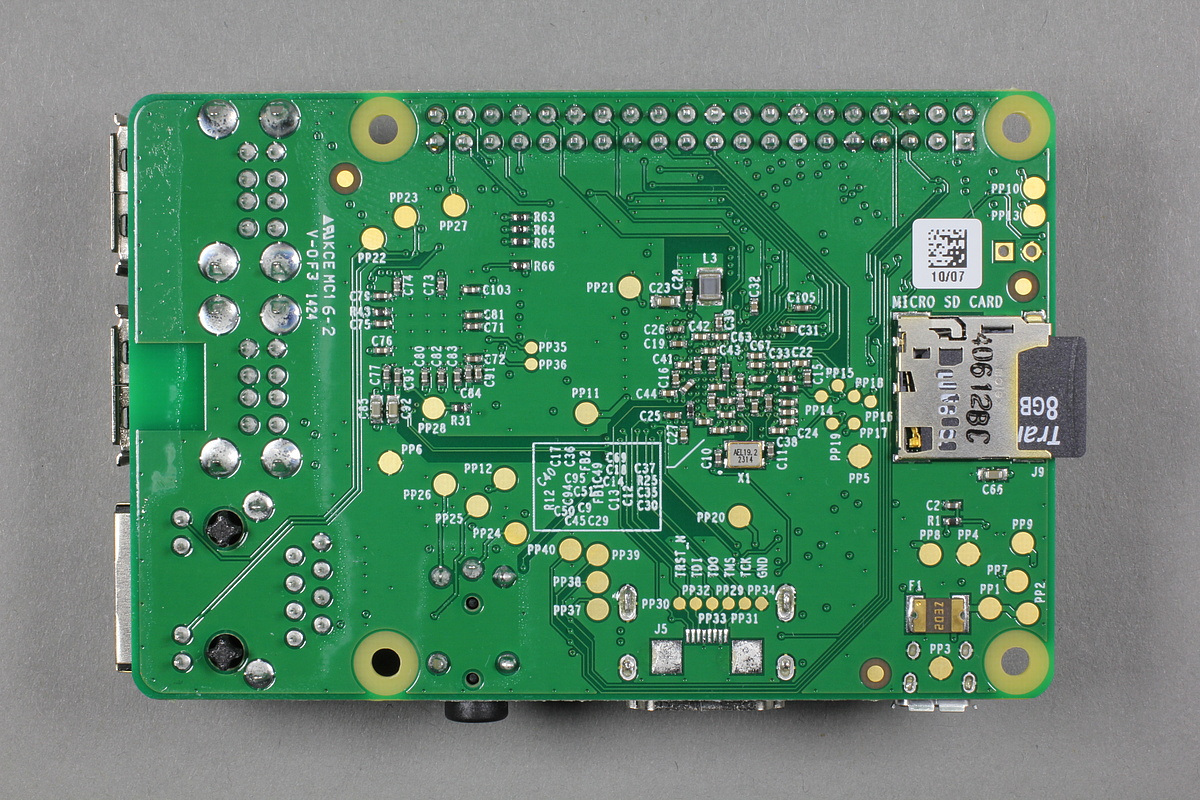

Raspberry Pi B+ - single core 700 MHz + 512 MB RAM

After more than 2 years a revised version of "Model B +" of the Raspberry Pi was released. Attention was not paid to more power but more GPIO ports now 40, more USB ports now 4, reducing energy demand, a new form factor of the motherboard and the use of a MicroSD slot.

Pro vs. Contra

  • proPower consumption
  • proCommunity
  • proApplications
  • proKodi / XBMC suitable
  • contraVery slow CPU
  • contraNetwork depends on the USB controller

Info

Producer: Raspberry Pi gb

http://www.raspberrypi.org

Status: Launched

Price: 30,95 €

Technical Specifications - Released: 13.07.2014

SOC: Broadcom BCM2835

CPU Architecture: ARM11-76JZF-S

CPU Cores: 1

CPU Frequency: 700 MHz

GPU: Broadcom VideoCore IV
@ 250 MHz
1080p30 H.264/MPEG-4

RAM: 512 MB

RAM Type: SDRAM

RAM Speed: 400 MHz

Video output: HDMI

HDMI CEC: Yes

Audio output: 3.5 mm jack, HDMI

USB: 4 x USB 2.0

USB OTG: -

Ethernet: 10/100 MBit/s

Wifi: -

Bluetooth: -

GPIO: 40 Pin

Storage: MicroSD

Power: 1.8A @ 5V - Micro-USB

Power idle: -

Power max: -

Dimension: 89.4 x 58.6 x 19.5 mm

Weight: 42 g

Operatingsystem: Raspian
