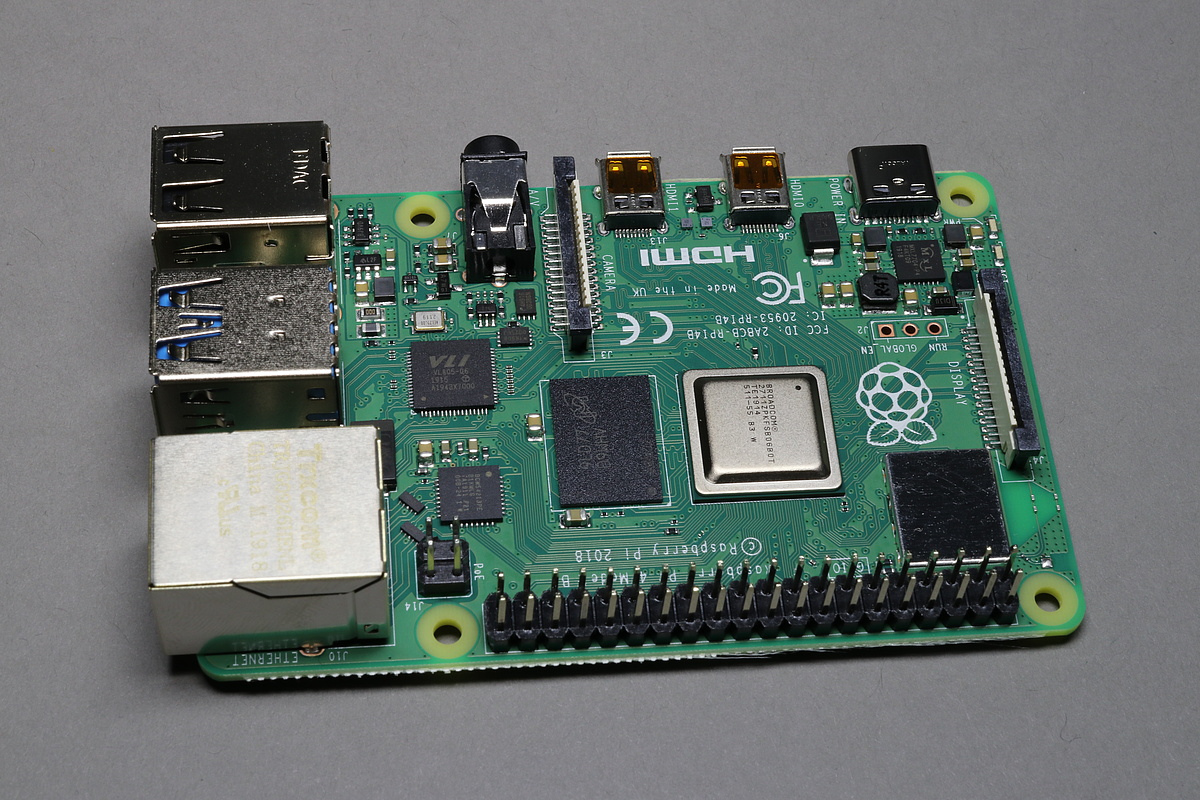

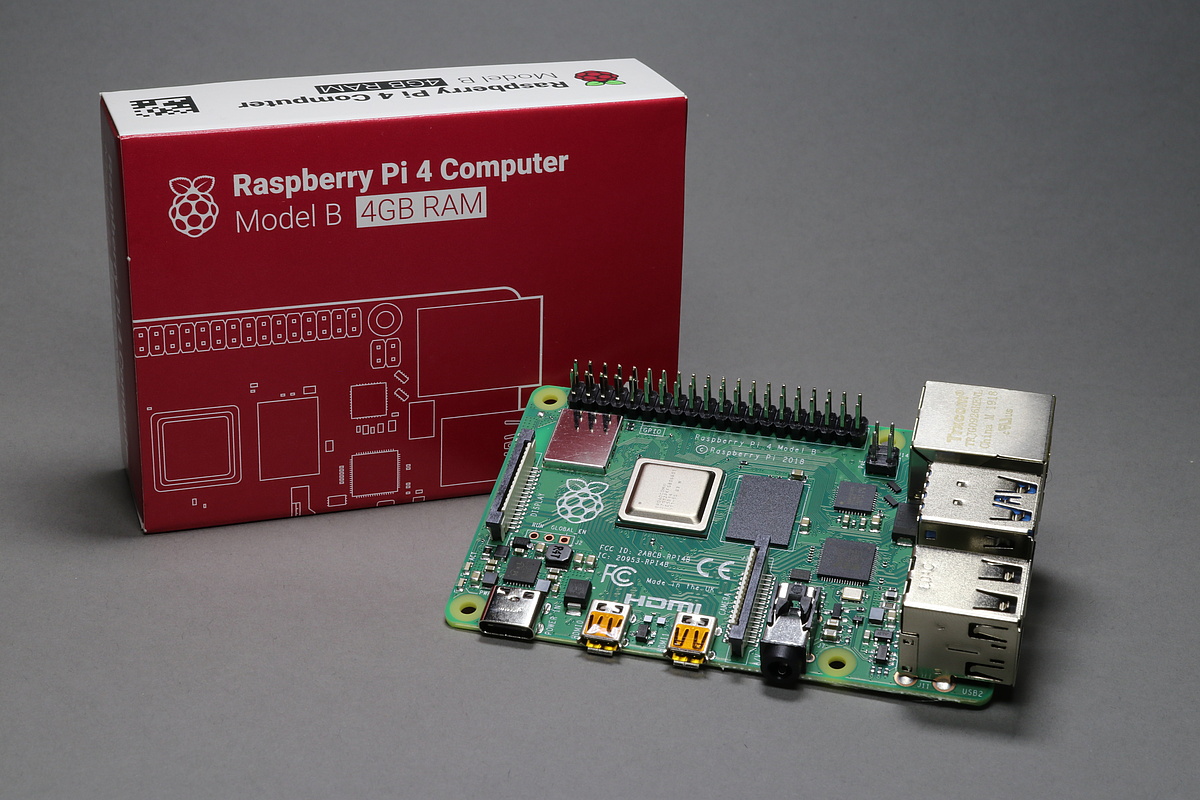

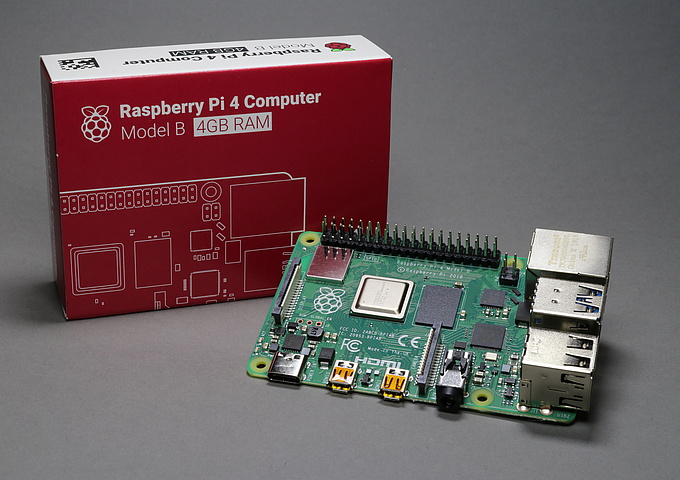

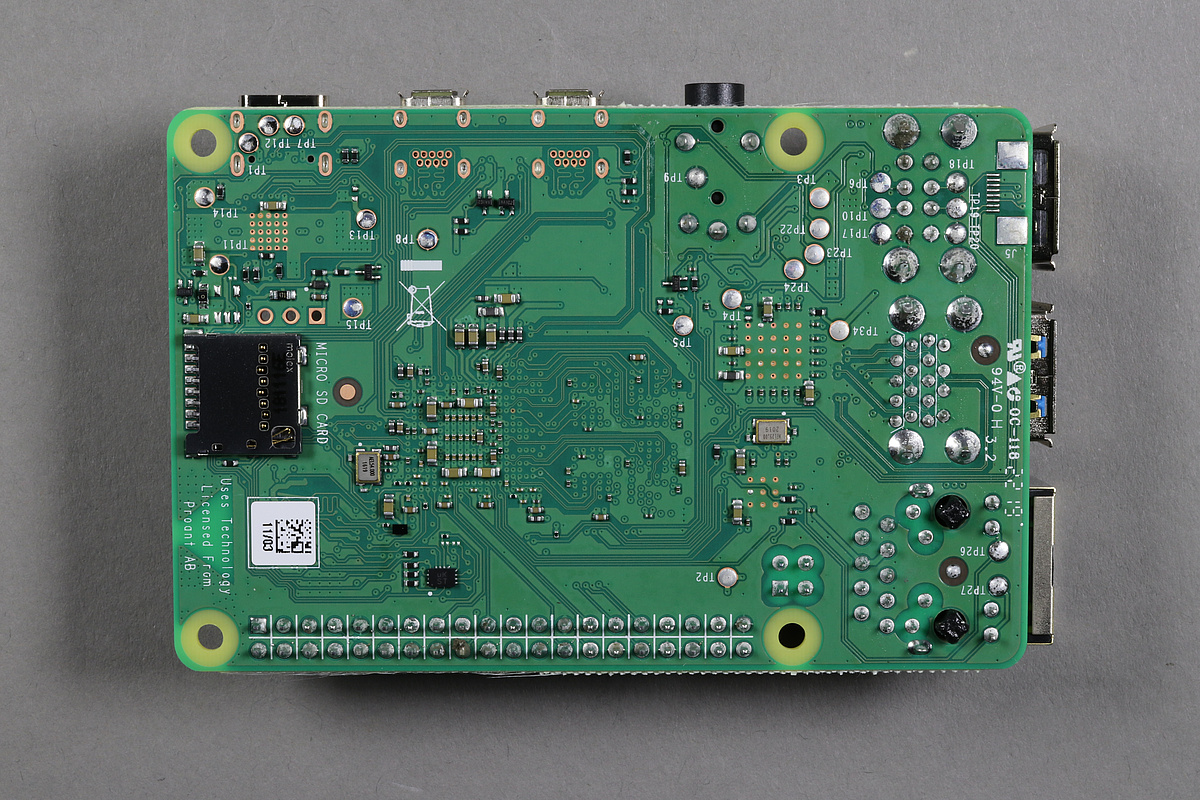

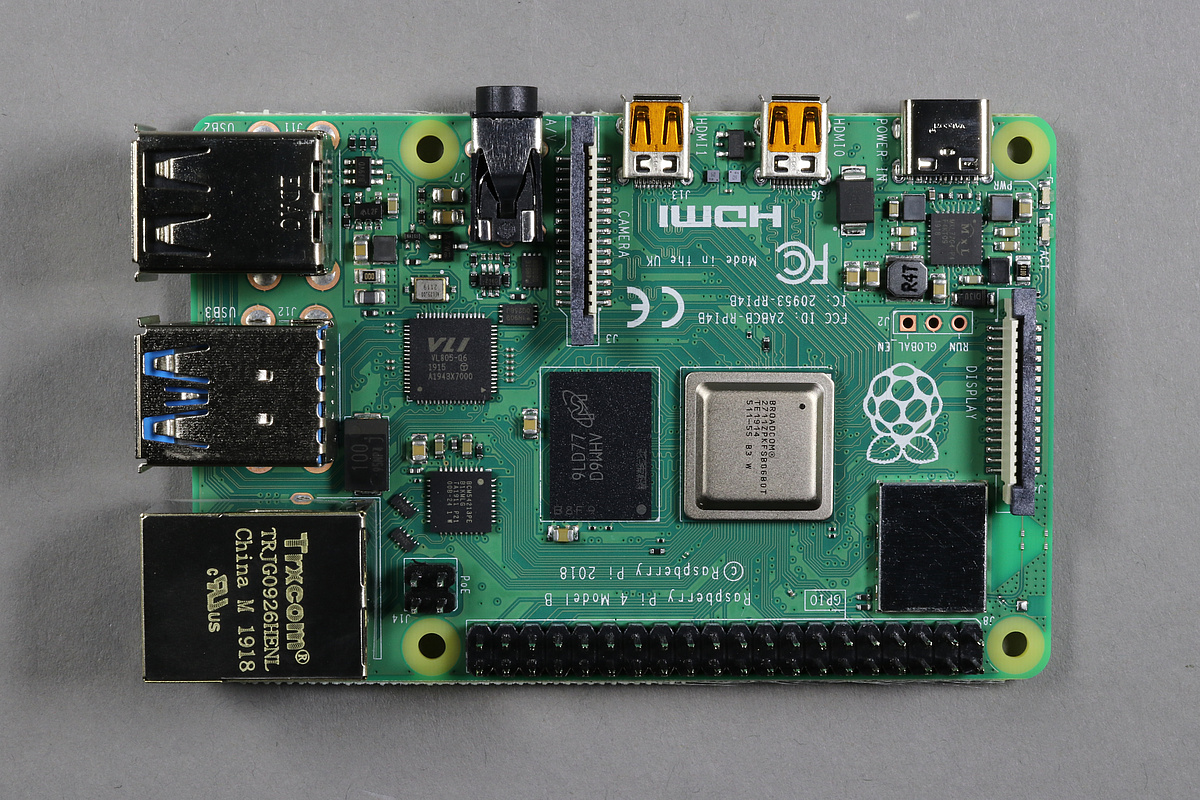

Raspberry Pi 4 B - quad core 1.5 GHz + 4 GB RAM

Normally a new version of Rapberry Pi is always expected in February. In June 2019 the Raspberry Pi 4 B with improved hardware was released. Revised were SoC (CPU/GPU), more and faster RAM up to 4 GB and the interfaces with USB 3.0 and Gigabit Ethernet. Also the power supply is now USB-C instead of MicroUSB and now two Micro-HDMI sockets instead of an old HDMI 1.4. Despite more processing power and other interfaces the power consumption is on the same level as the predecessor.

Order: Raspberry Pi 4 B

Pro vs. Contra

  • proNew GPU (VideoCore-VI)

  • proUSB 3.0

  • proGigabit Ethernet

  • proPower consumption

  • proCommunity

Info

Producer: Raspberry Pi gb

http://www.raspberrypi.org

Status: Launched

Price: 57,90 €

Technical Specifications - Released: 24.06.2019

SOC: Broadcom BCM2711

CPU Architecture: ARM Cortex-A72

CPU Cores: 4

CPU Frequency: 1.5 GHz

GPU: Broadcom VideoCore VI
@ 500 MHz
up to 4Kp60

RAM: 1/2/4 GB

RAM Type: LPDDR4

RAM Speed: 1866 MHz

Video output: 2x micro-HDMI 2.0

HDMI CEC: Yes

Audio output: 3.5 mm jack, HDMI

USB: 2 x USB 3.0 / 2 x USB 2.0

USB OTG: -

Ethernet: 10/100/1000 MBit/s

Wifi: 802.11 b/g/n/ac WiFi 5

Bluetooth: 5.0

GPIO: 40

Storage: MicroSD

Power: 3A @ 5V USB-C

Power idle: -

Power max: -

Dimension: 88 × 58.6 × 19.2 mm

Weight: 47.2 g

Operatingsystem: Raspian
