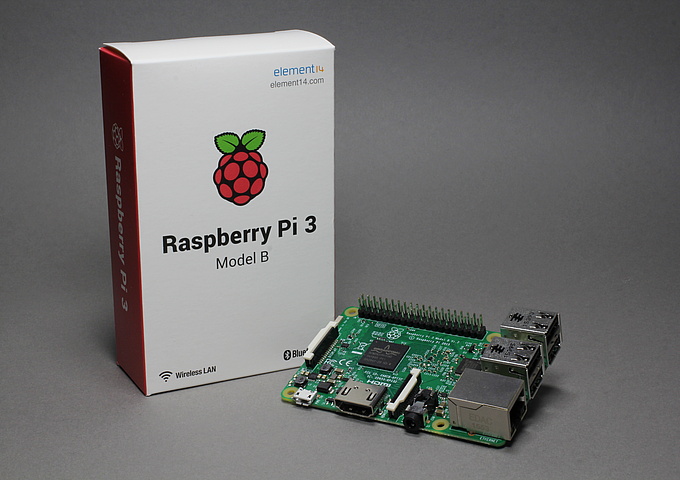

Raspberry Pi 3 B - quad core 1.2 GHz + 1 GB RAM

The Raspberry Pi 3 was released on the same day as ODROID-C2. It is more a model care. So the RPi3 has a 1.2GHz 64-bit quad-core CPU and Wi-Fi and Bluetooth get integrated. Everything else is the same as the Raspberry Pi 2 Model B.

Pro vs. Contra

  • proWi-Fi and Bluetooth
  • proPower consumption
  • proCommunity
  • proApplications
  • proKodi / XBMC suitable
  • contra4 years old GPU was already in RPi B 2012
  • contra100-Mbit/s-Ethernet
  • contramicroSD-slot no "push-push" functionality

Info

Producer: Raspberry Pi gb

http://www.raspberrypi.org

Status: Launched

Price: 39 €

Technical Specifications - Released: 29.02.2016

SOC: Broadcom BCM2837

CPU Architecture: ARM Cortex-A53

CPU Cores: 4

CPU Frequency: 1.2 GHz

GPU: Broadcom VideoCore IV
@ 300/400 MHz
1080p60 H.264/MPEG-4

RAM: 1 GB

RAM Type: LPDDR2

RAM Speed: 900 MHz

Video output: HDMI

HDMI CEC: Yes

Audio output: 3.5 mm jack, HDMI

USB: 4 x USB 2.0

USB OTG: -

Ethernet: 10/100 MBit/s

Wifi: 802.11 b/g/n

Bluetooth: 4.1 + LE

GPIO: 40 Pin

Storage: MicroSD

Power: 2.5A @ 5V - Micro-USB

Power idle: -

Power max: -

Dimension: 86.8 x 58.6 x 19.2 mm

Weight: 42.2 g

Operatingsystem: Raspian
