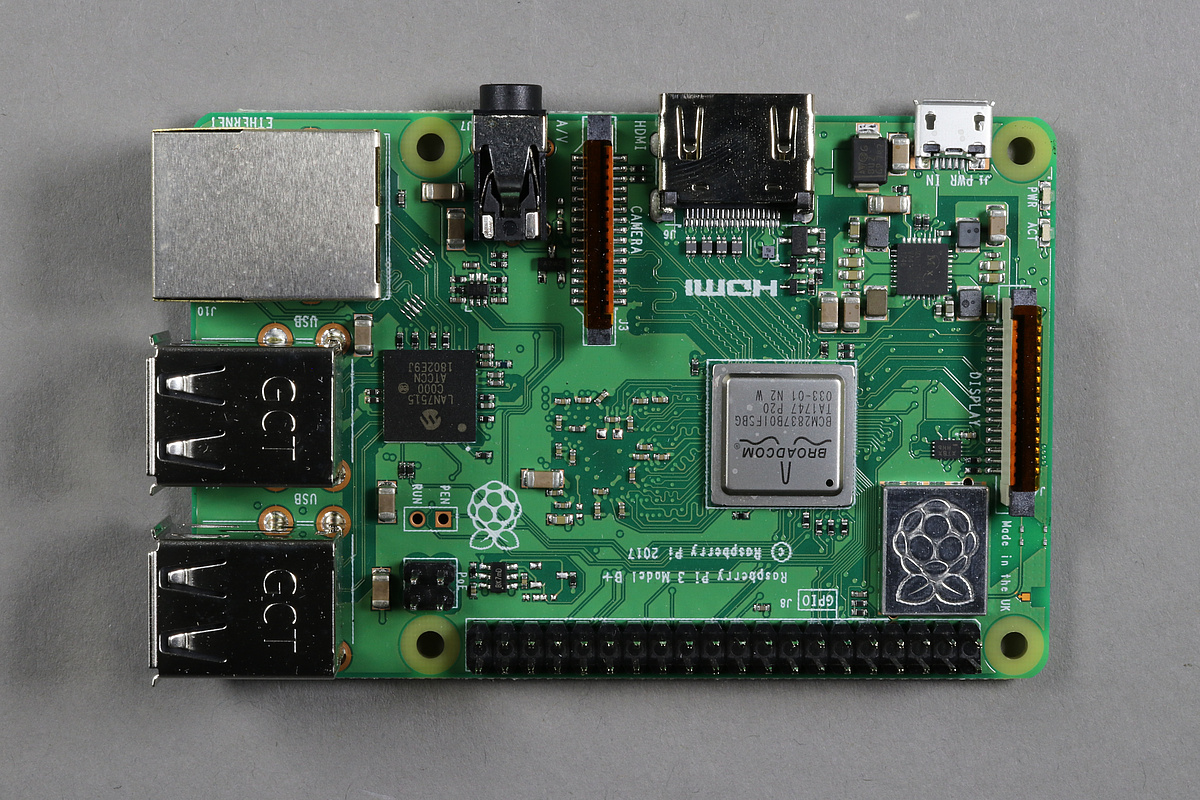

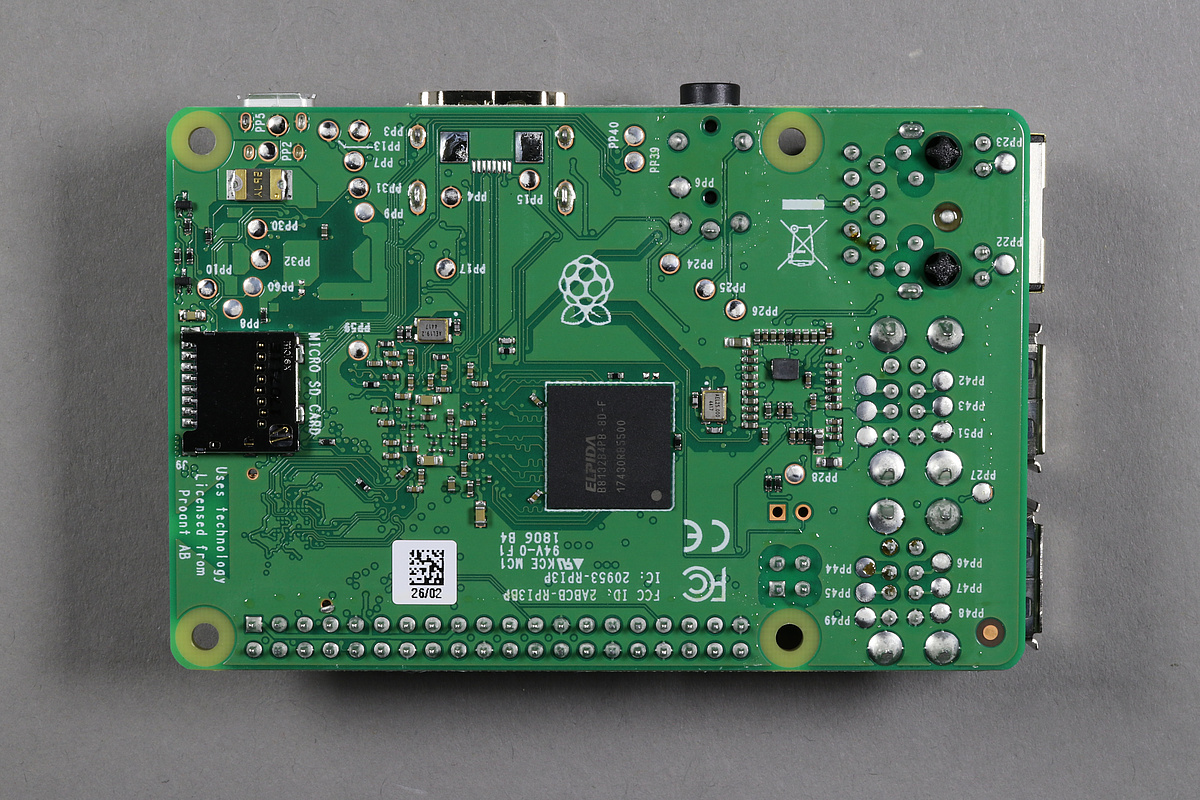

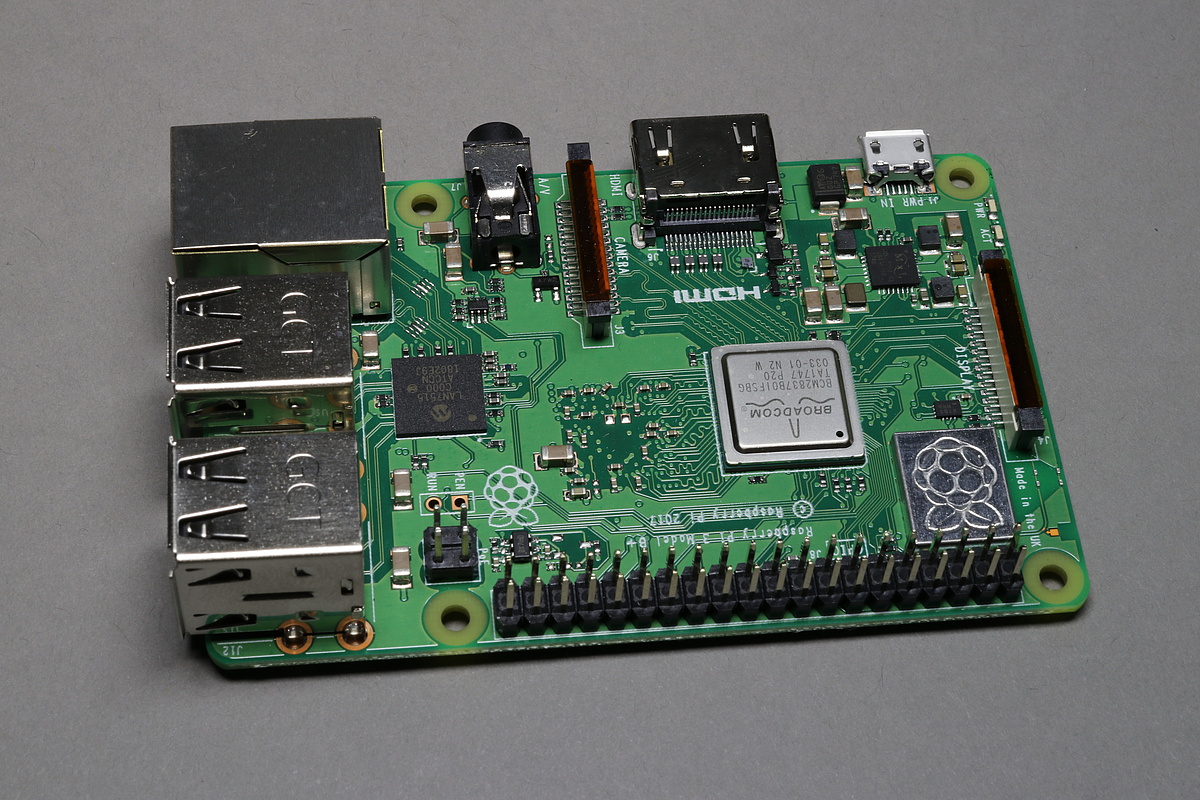

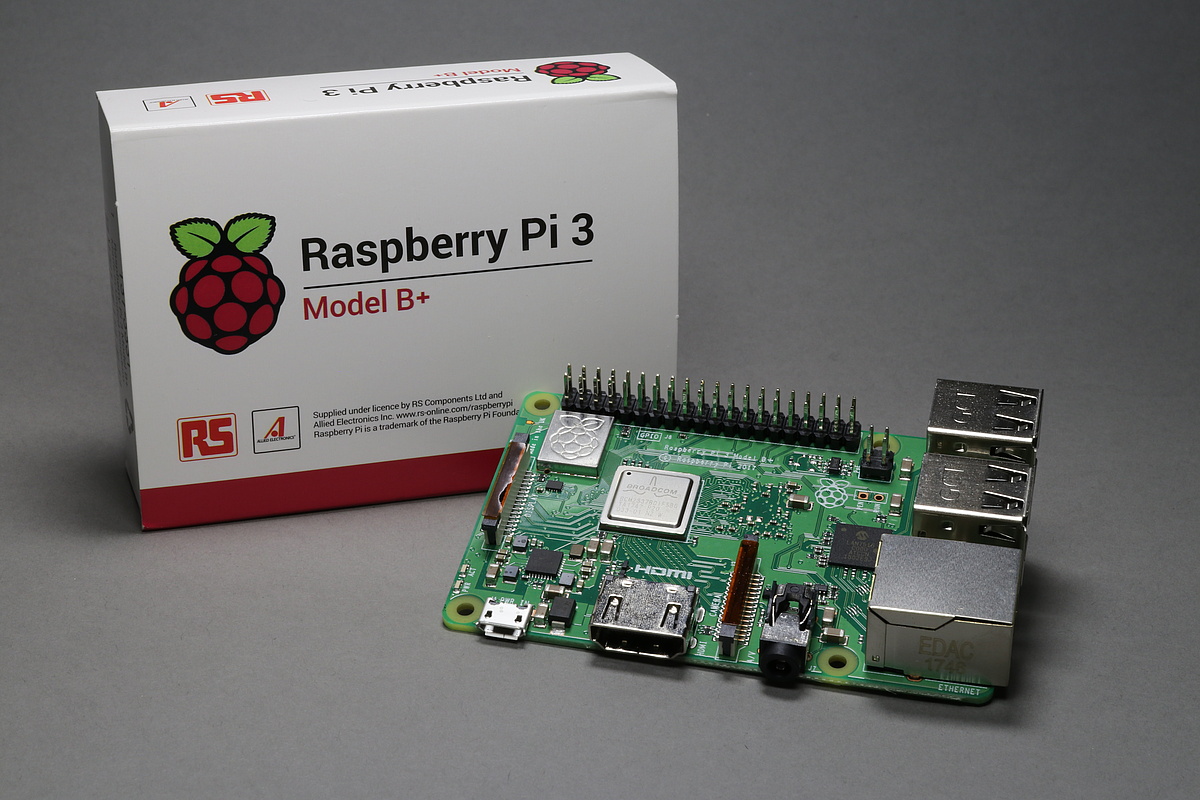

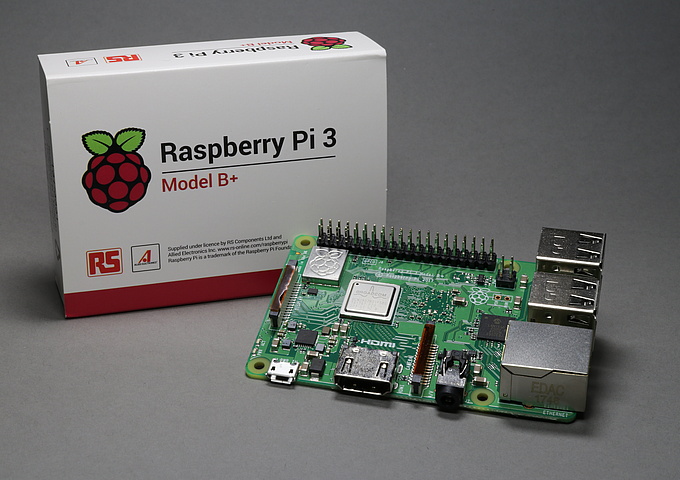

Raspberry Pi 3 B + - quad core 1.4 GHz + 1 GB RAM

The Raspberry Pi 3 plus was released on "Pi Day" and represents the latest revision of the Raspberry Pi 3 series. The processor, which now clocks with 1.4GHz 64-bit quad-core, has been revised and WLAN and Bluetooth have been improved. Also a Power-over-Ethernet possibility was integrated (requires PoE HAT).

Pro vs. Contra

  • proWi-Fi and Bluetooth

  • proPower consumption

  • proCommunity

  • proApplications

  • proKodi suitable

  • contra4 years old GPU was already in RPi B 2012

  • contra100-Mbit/s-Ethernet

  • contramicroSD-slot no "push-push" functionality

Info

Producer: Raspberry Pi gb

http://www.raspberrypi.org

Status: Launched

Price: 38 €

Technical Specifications - Released: 13.03.2018

SOC: Broadcom BCM2837B0

CPU Architecture: ARM Cortex-A53

CPU Cores: 4

CPU Frequency: 1.4 GHz

GPU: Broadcom VideoCore IV
@ 300/400 MHz
1080p60 H.264/MPEG-4

RAM: 1 GB

RAM Type: LPDDR2

RAM Speed: 900 MHz

Video output: HDMI

HDMI CEC: Yes

Audio output: 3.5 mm jack, HDMI

USB: 4 x USB 2.0

USB OTG: -

Ethernet: 10/100 MBit/s

Wifi: 802.11 b/g/n/ac

Bluetooth: 4.2 + LE

GPIO: 40 Pin

Storage: MicroSD

Power: 2.5A @ 5V - Micro-USB

Power idle: -

Power max: -

Dimension: 87.1 x 58.4 x 19.1 mm

Weight: 50.3 g

Operatingsystem: Raspian
