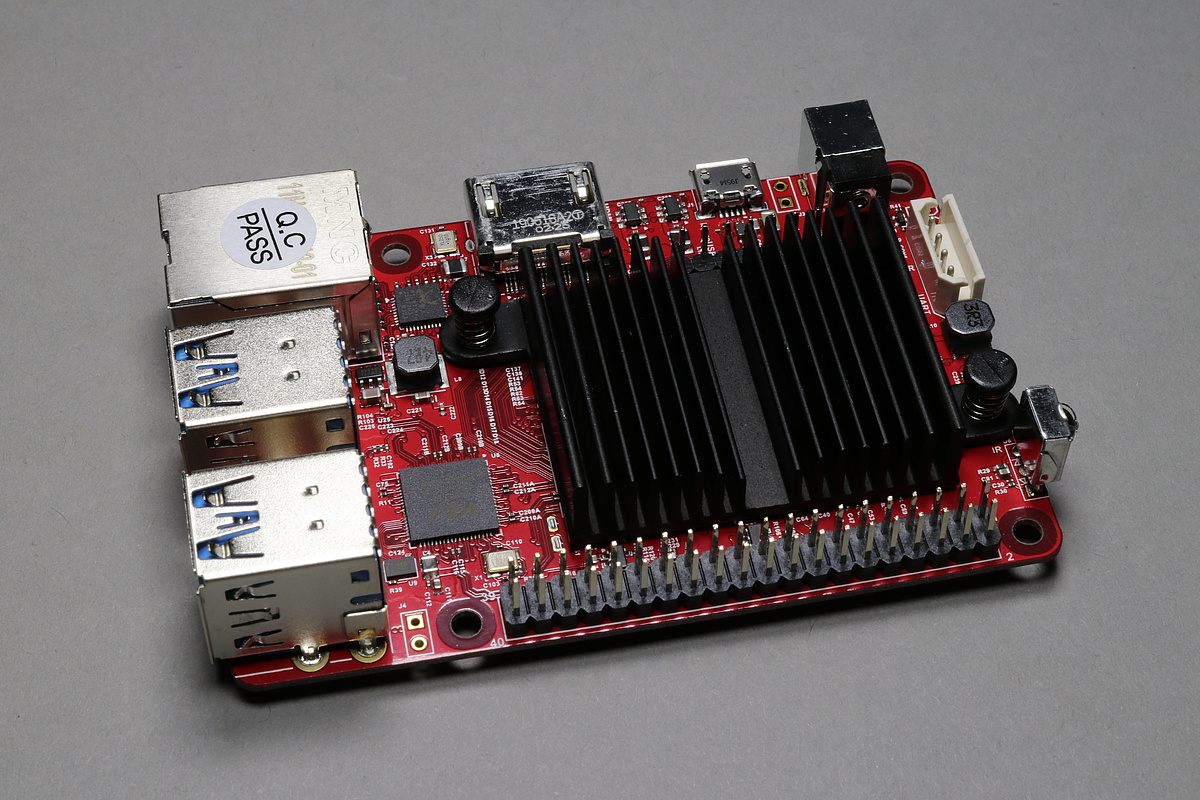

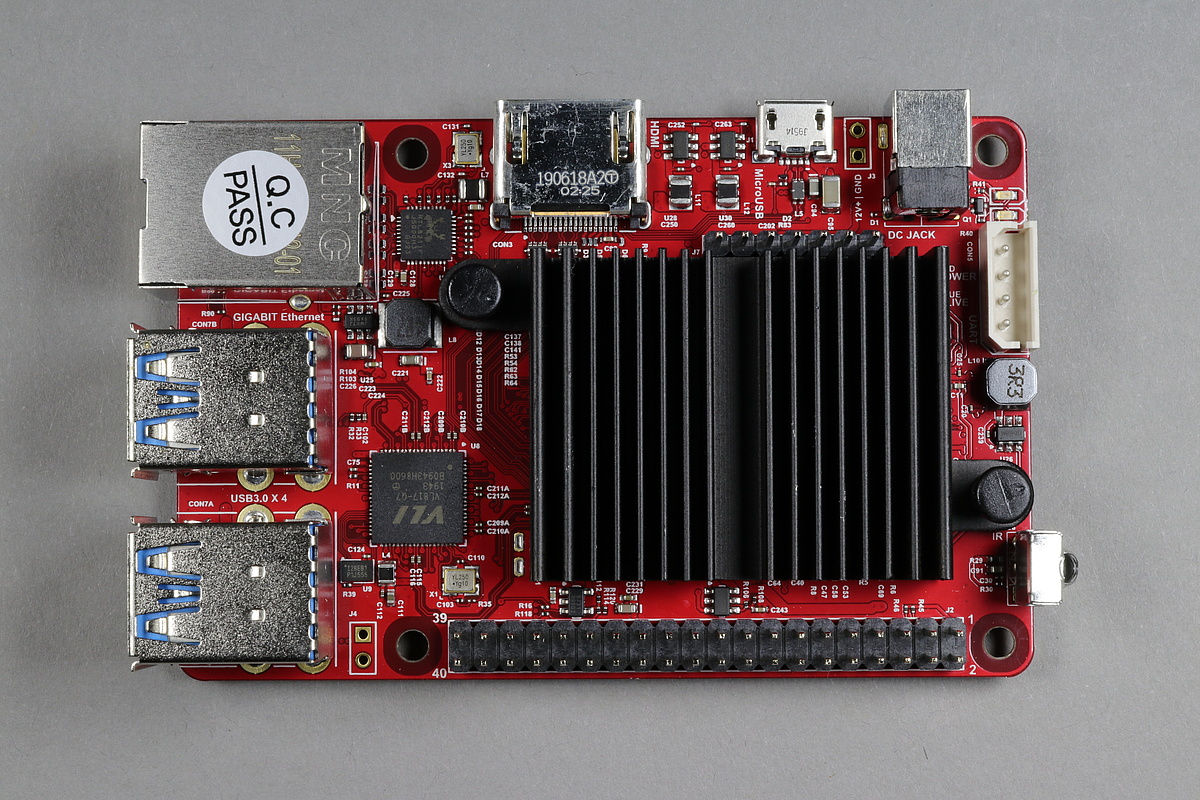

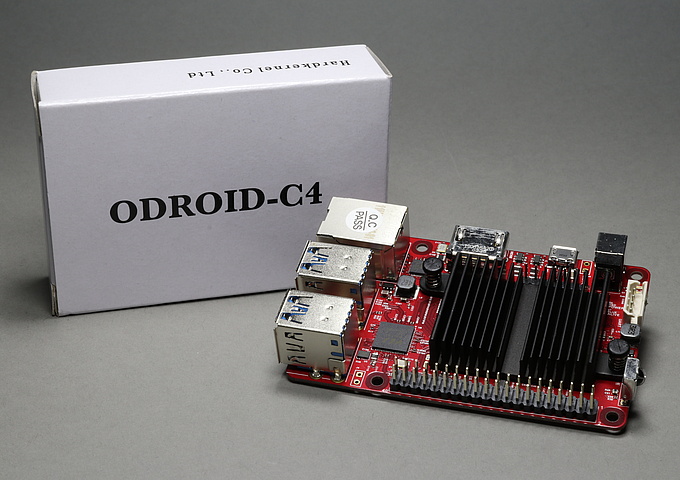

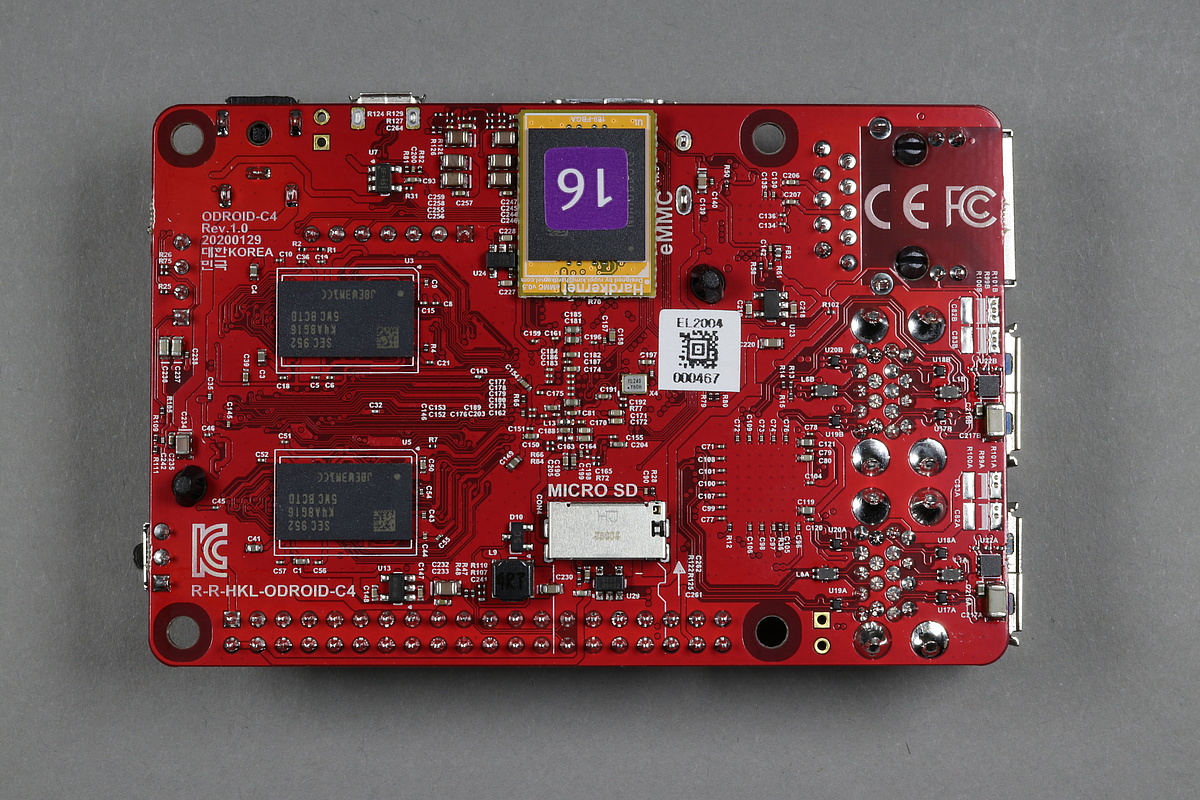

ODROID-C4 (Hardkernel) - quad core 2.0 GHz + 4 GB RAM

Hardkernel has brought a more powerful version onto the market with the ODROID-C4 and is thus naturally targeting the Raspberry Pi 4 B. Thus 4 CPU cores and 4 GB RAM are installed, USB 3.0 was also integrated.
Finally, it was also paid attention to the HDMI CEC and GPIO SPI with the SOC is possible. The power supply is not USB-C but DC Jack 12V/2A with 5.5mm 2.1mm.

Pro vs. Contra

  • proGigabit network

  • proHDMI 2.0 with CEC

  • proTwo storage media slots MicroSD & eMMC

  • proSPI

  • contrano more RTC

  • contraDC power jack

Info

Producer: Hardkernel kr

http://www.hardkernel.com

Status: Launched

Price: 69,95 €

Technical Specifications - Released: 23.04.2020

SOC: Amlogic S905X3

CPU Architecture: ARM Cortex A55

CPU Cores: 4

CPU Frequency: 2.0 GHz

GPU: Arm Mali-G31MP2
650Mhz
4K@60Hz

RAM: 4 GB

RAM Type: DDR4

RAM Speed: 1320 Mhz

Video output: HDMI 2.0

HDMI CEC: Yes

Audio output: HDMI

USB: 4 x USB 3.0

USB OTG: 1 x

Ethernet: 10/100/1000 MBit/s

Wifi: -

Bluetooth: -

GPIO: 40 Pin

Storage: MicroSD, eMMC

Power: 12V @ 2A DC Jack

Power idle: -

Power max: -

Dimension: 88.8 x 57.2 x 19.4 mm

Weight: 60.4 g

Operatingsystem: Ubuntu MATE 20.04
