ODROID-C2 (Hardkernel) - quad core 1.53 Ghz + 2 GB RAM

quad core 1.53 Ghz + 2 GB RAM
quad core 1.53 Ghz + 2 GB RAM
quad core 1.53 Ghz + 2 GB RAM

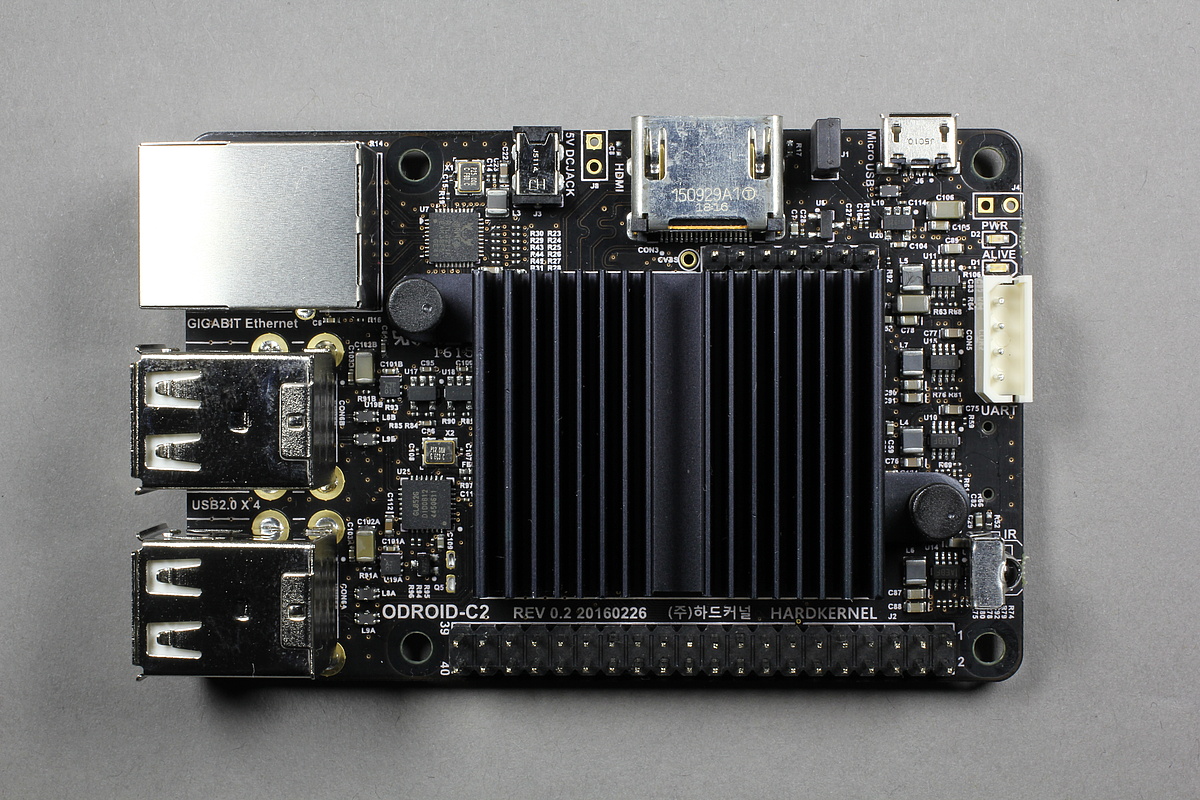

The ODROID-C2 was published on the same day as the Raspberry Pi 3. The board layout is now kept in black. As CPU Amlogic S905 64-bit ARM now used. Unlike other dev board it has an HDMI 2.0 port, which enables the CPU video decoding expenditure of 4K @ 60fps.

Pro vs. Contra

  • proGigabit network

  • proHDMI 2.0 with CEC

  • proTwo storage media slots Micro SD & eMMC

  • contraCPU does not 2 Ghz but 1.5 GHz limit

  • contraOnly USB 2.0 ports

  • contraAge kernel 3.14LTS

  • contraNo SPI interface

Info

Hardkernel

Producer: Hardkernel kr

http://www.hardkernel.com

Status: End of Life

Price: 49,95 €

Technical Specifications - Released: 28.02.2016

SOC: Amlogic S905

CPU Architecture: ARM Cortex-A53

CPU Cores: 4

CPU Frequency: 1.53 GHz

GPU: 3 x ARM Mali-450
MP 700MHz
H.265 4K/60 H.264 4K/30

RAM: 2 GB

RAM Type: DDR3

RAM Speed: 912 MHz

Video output: HDMI 2.0 4K/60Hz

HDMI CEC: Yes

Audio output: HDMI

USB: 4 x USB 2.0

USB OTG: 1 x

Ethernet: 10/100/1000 MBit/s

Wifi: -

Bluetooth: -

GPIO: 40 Pin

Storage: MicroSD, eMMC

Power: 2A @ 5V - 2.5x0.8mm

Power idle: -

Power max: -

Dimension: 86.8 x 57.2 x 20.7 mm

Weight: 57.5 g

Operatingsystem: Ubuntu 16.04 LTS
