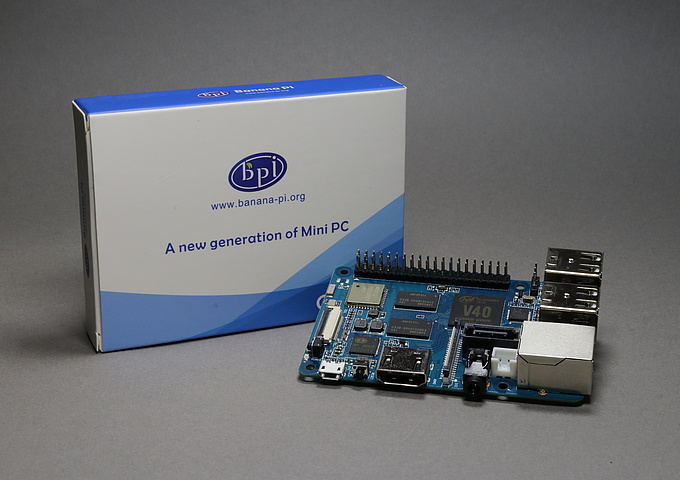

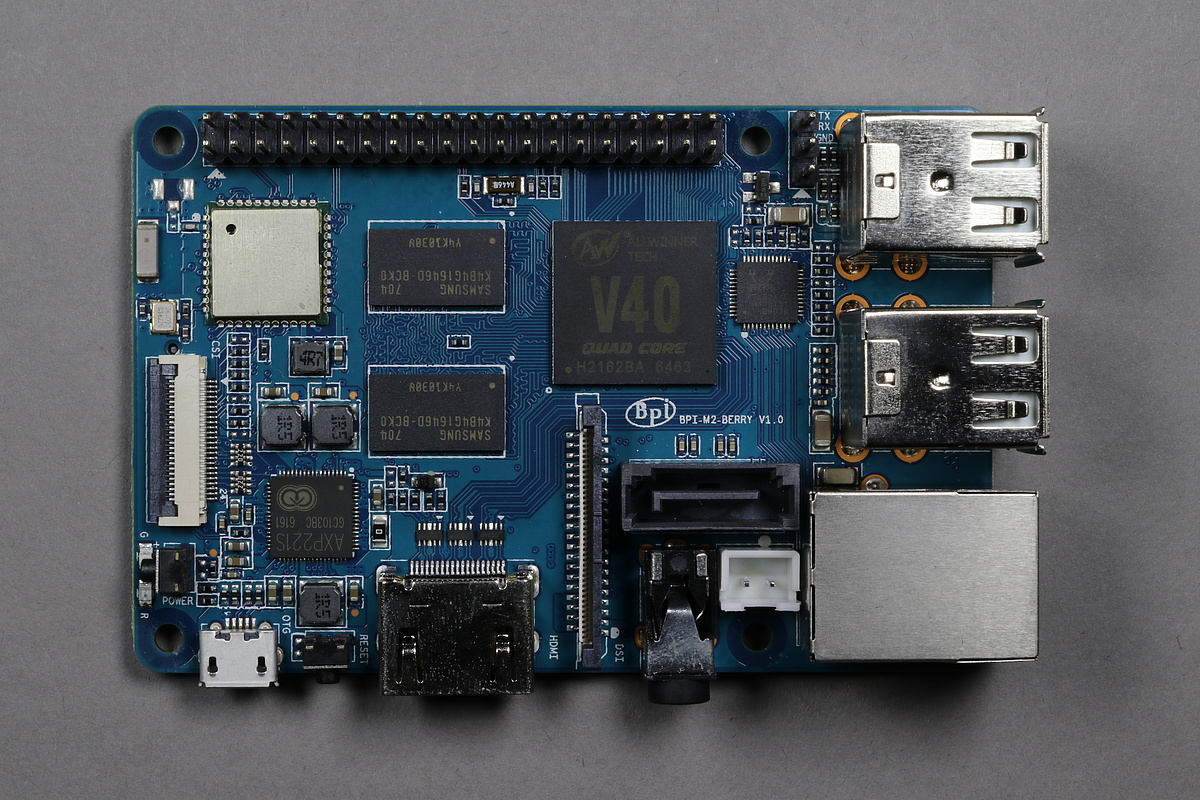

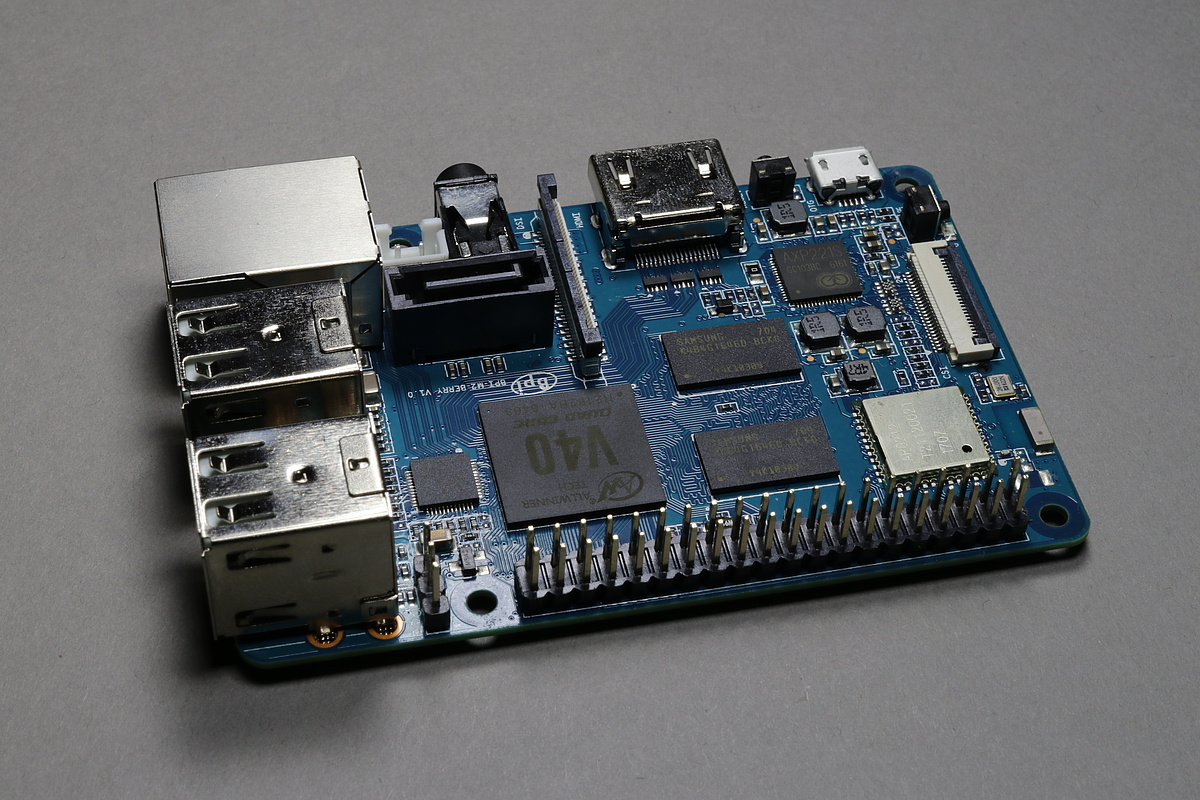

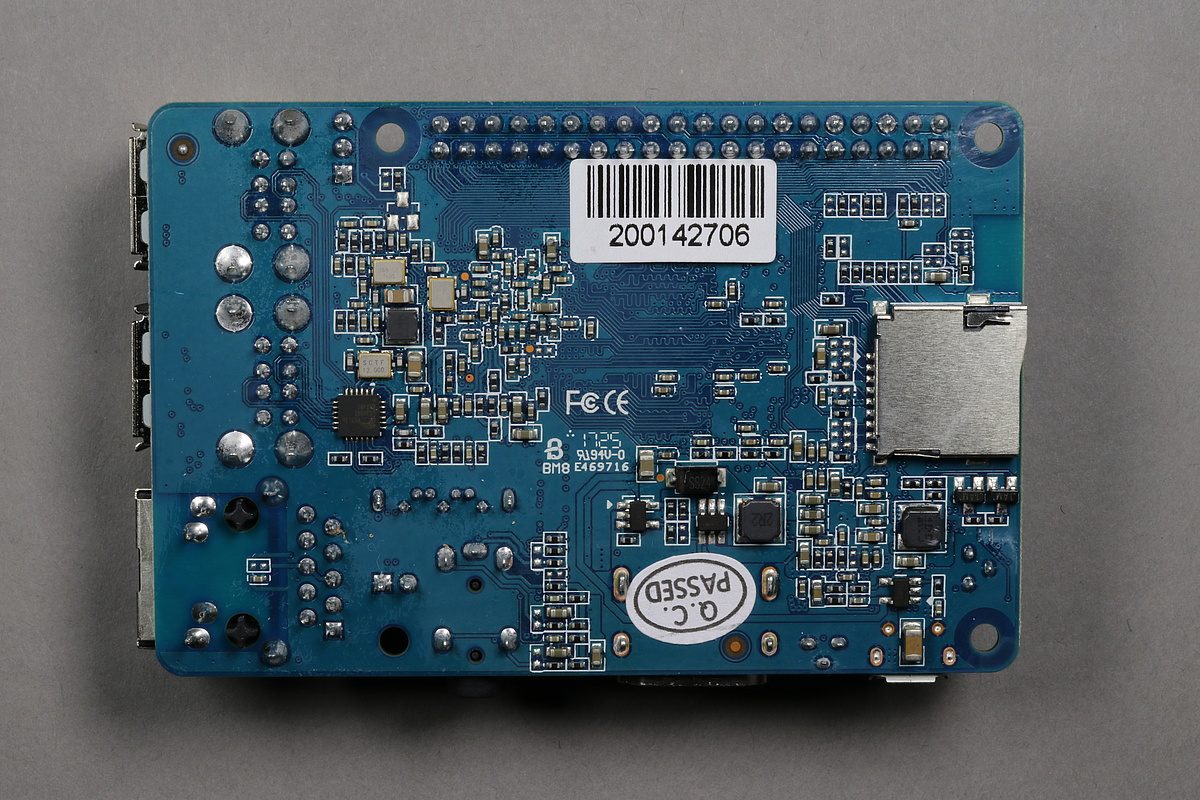

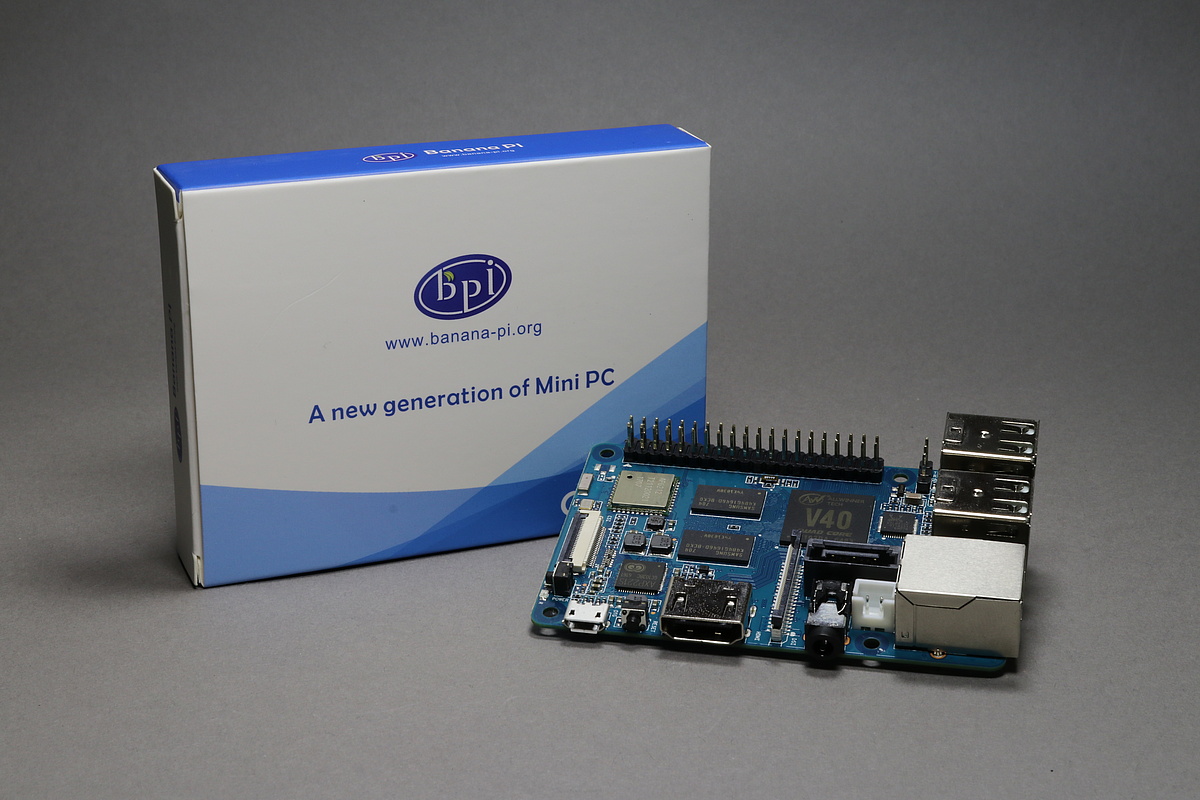

Banana Pi M2 Berry - quad core 1.2 GHz + 1 GB RAM

quad core 1.2 GHz + 1 GB RAM
quad core 1.2 GHz + 1 GB RAM
quad core 1.2 GHz + 1 GB RAM

Banana Pi jumped up early on the Raspberr Pi train with different boards. Now Banana Pi has also launched a board in the form factor of the Raspberry Pi 3.

Apart from minor differences, the technical features such as CPU power, GPU orientation (FULL HD), RAM, WIFI and Bluetooth are identical to the Raspberry Pi 3. The Banana Pi M2 Berry has a SATA port incl. 5V connector, which is directly connected to the SOC and not via the USB controller.

Order: Banana Pi M2 Berry

Pro vs. Contra

  • contraSATA Positioning

Info

Banana Pi

Producer: Banana Pi cn

http://www.banana-pi.org

Status: Launched

Price: 40 €

Technical Specifications - Released: 16.07.2017

SOC: Allwinner V40

CPU Architecture: ARM Cortex A7

CPU Cores: 4

CPU Frequency: 1.2 GHz

GPU: ARM Mali-400MP2
Dul Core, 500 MHz
H.264 max 1080p60

RAM: 1 GB

RAM Type: DDR3 SDRAM

RAM Speed: -

Video output: HDMI 1.4b

HDMI CEC: No

Audio output: 3.5 mm jack, HDMI

USB: 4 x USB 2.0

USB OTG: -

Ethernet: 10/100/1000 MBit/s

Wifi: 802.11 b/g/n

Bluetooth: 4.0

GPIO: 40 Pin

Storage: MicroSD, SATA

Power: 2A @ 5V - Micro-USB

Power idle: -

Power max: -

Dimension: 87.0 x 57.4 x 19.4 mm

Weight: 42 g

Operatingsystem: -
