Construction manual for OpenDisplayCase

Important: Remove the foil from both sides of the transparent acrylic plate.

Recommendation: For hard drives decoupling rubber washers

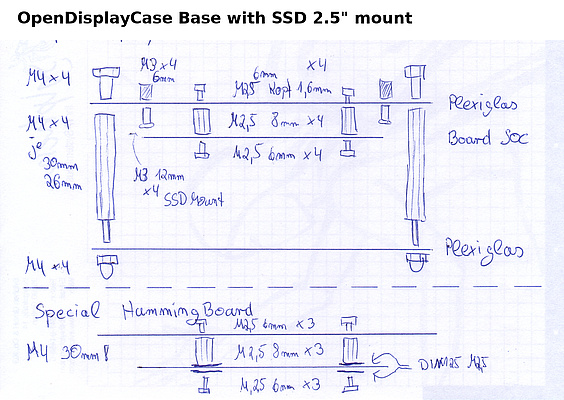

Base with SSD 2.5" mount

For Raspberry Pi and more ...

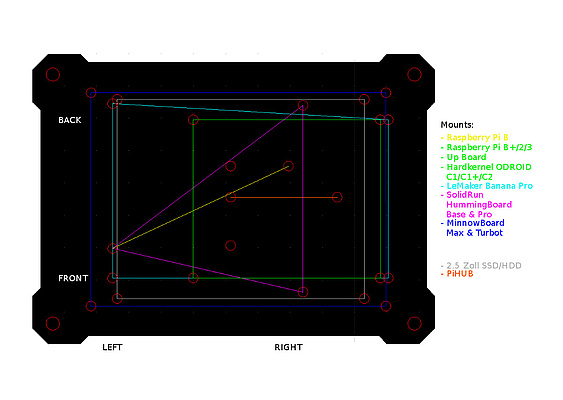

Mount information

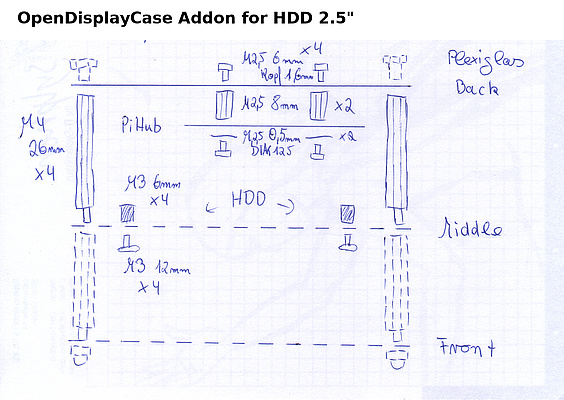

Addon for HDD 2.5"

HDD 2.5" hard disk and PiHub

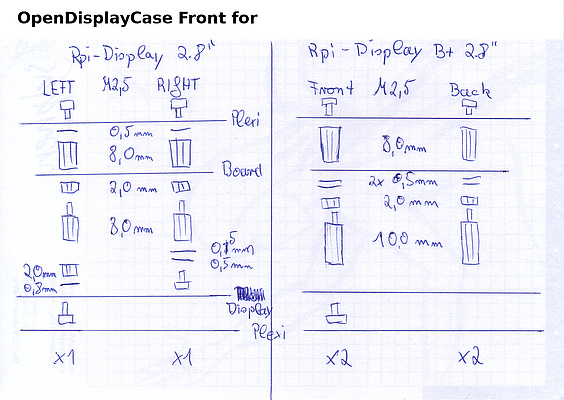

Front for

Rpi-Display 2.8" B or Rpi-Display 2.8" B+

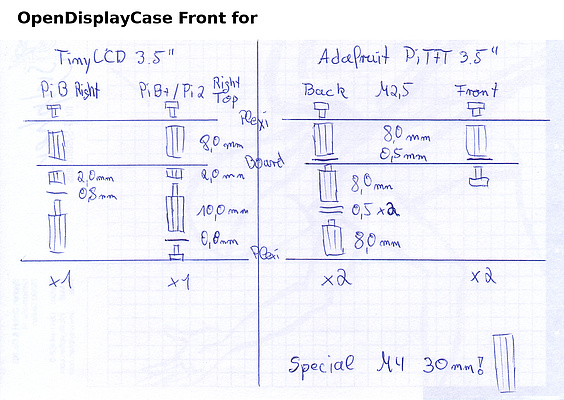

Front for

TinyLCD 3.5" or Adafruit PiTFT 3.5"
