ODROID-C1 (Hardkernel) - quad core 1.5 GHz + 1 GB RAM

quad core 1.5 GHz + 1 GB RAM
quad core 1.5 GHz + 1 GB RAM
quad core 1.5 GHz + 1 GB RAM

The form factor of the motherboard and the price of ODROID-C1 is aimed directly at the Raspberry Pi, which is also reflected in the company's product page for ODROID-C1. Here was ODROID-C1 vs. Raspberry Pi + B compared - now the comparison is made to RPi2. The peculiarities of ODROID-C1 are supplied with the S805 1.5GHz quad-core, Gigabit Ethernet, IR receiver and RTC.

Pro vs. Contra

  • proGigabit Network

  • proTwo storage media slots Micro SD & eMMC

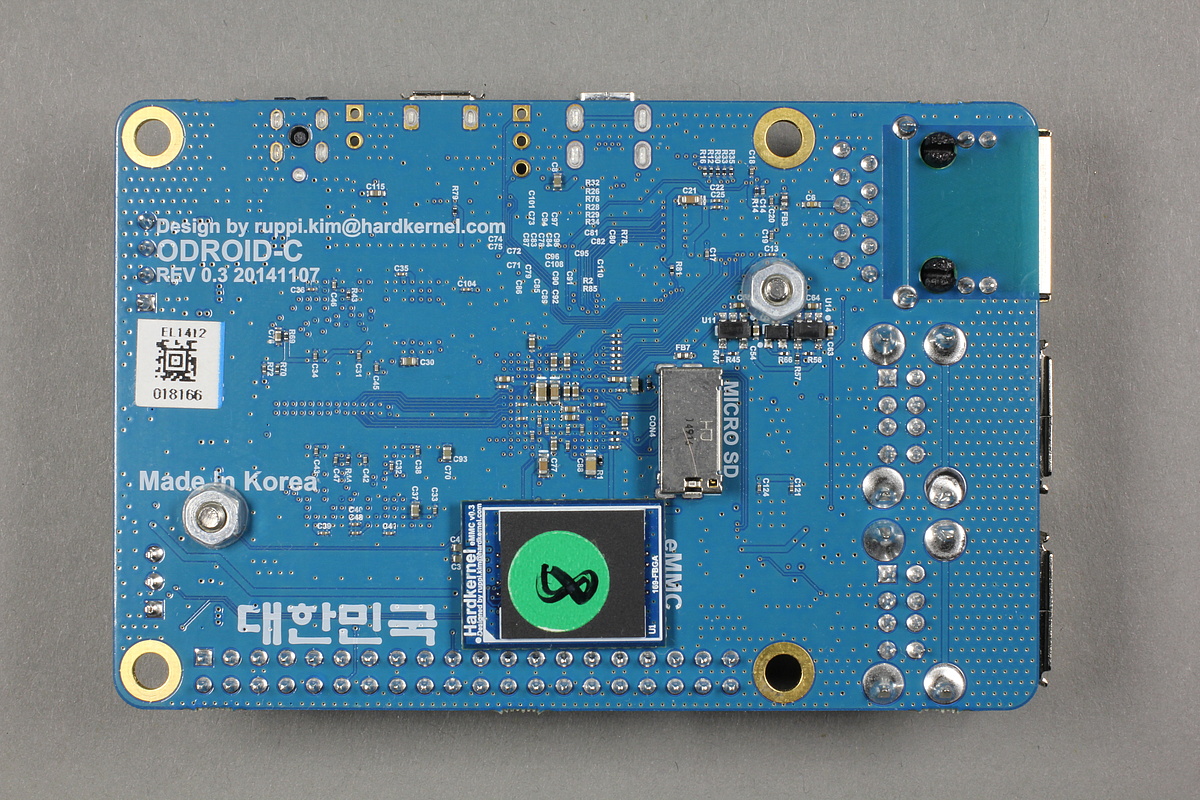

  • contraSlots MicroSD & eMMC on the back of SOC

  • contraMicro HDMI and problems with CEC

  • contraCan be very warm> 80 degrees

  • contraNo dual screen HDMI / GPIO possible

Info

Hardkernel

Producer: Hardkernel kr

http://www.hardkernel.com

Status: End of Life

Price: 44 €

Technical Specifications - Released: 10.12.2014

SOC: Amlogic S805

CPU Architecture: ARM Cortex-A4

CPU Cores: 4

CPU Frequency: 1.5 GHz

GPU: 2 x ARM Mali-450
MP2 GPU @ 600MHz
-

RAM: 1 GB

RAM Type: DDR3

RAM Speed: 792 MHz

Video output: Micro HDMI 1.4

HDMI CEC: No

Audio output: Micro HDMI

USB: 4 x USB 2.0

USB OTG: 1 x

Ethernet: 10/100/1000 MBit/s

Wifi: -

Bluetooth: -

GPIO: 40 Pin

Storage: MicroSD, eMMC

Power: 2A @ 5V - 2.5x0.8mm

Power idle: -

Power max: -

Dimension: 86.6 x 56.9 x 20.8 mm

Weight: 63.8 g

Operatingsystem: Ubuntu 14.04 LTS
